Low Voltage - What Is It?

On the face of things Low Voltage can be daunting. However that couldn’t be further from the truth. It is so simple. Below we have illustrated 3 of our core systems which provide a solution for anyone and everyone.

Low Voltage Candles are very simply “Hard Wired Candles”

"A flick of a switch and they come on"

Smart Candle Low Voltage Candle systems were born out of convenience and based around the principals of minimal interaction, maximum integration and unbelievable realism.

Popular with establishments and homes alike that wish to have the ambience of candles without the hassle of real candles but at the flick of a switch.

Truly flexible and dynamic at the installation stage makes this popular with interior designers alike. Development over time has made the system extremely simple and highly effective.

Low Voltage 1-4 Candle System

Low Voltage 1-4 Candle System

Low Voltage 1-4 Candle System

Low Voltage 1-4 Candle System. This system will run up to 4 candles. It is perfect for use in the home or smaller environments such as shop window displays. Candles and connector leads are sold separately.

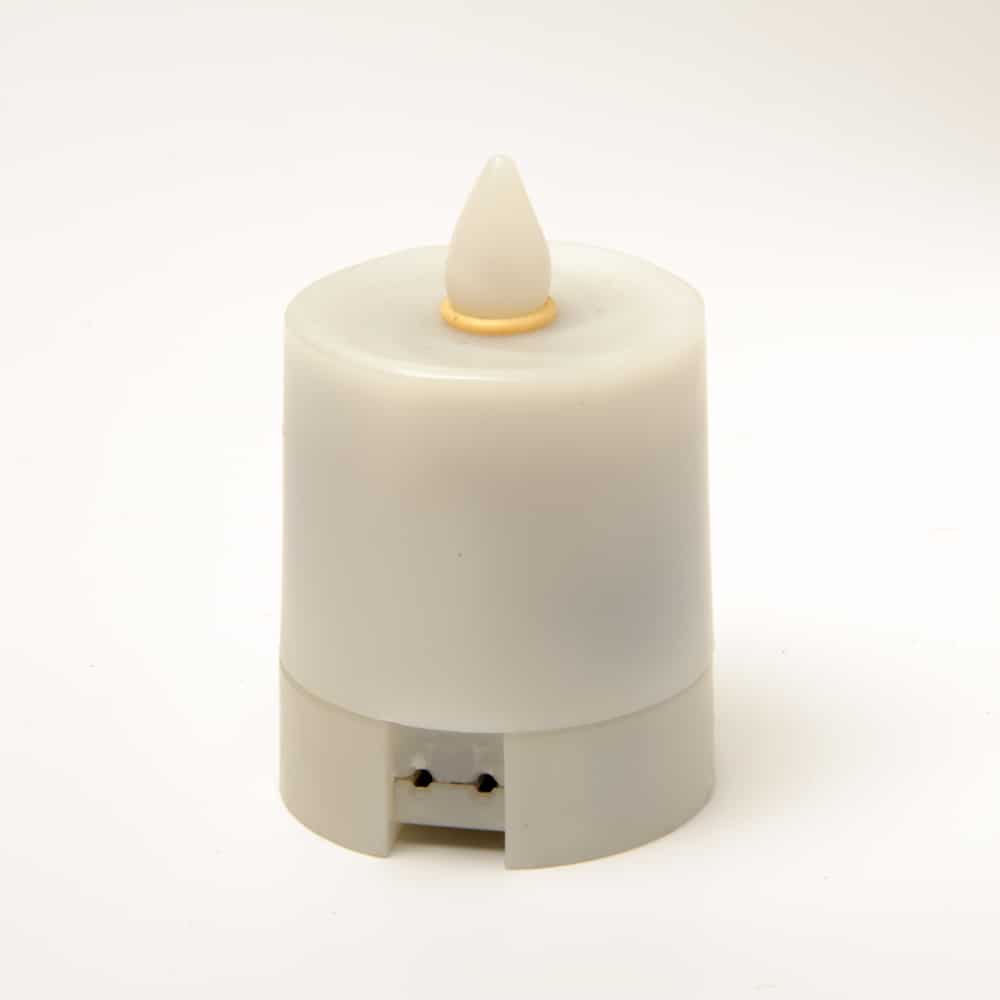

Low Voltage Candles

Low Voltage Candles

3 Available Options

- Melted Wax Pillar
- Luminara Moving Flame
- Low Voltage Module

Installations will dictate which candles are to be used. More complex installations may require some assistance with putting together what is required. If you are unsure please do just contact us.

Connector Leads

Connector Leads

Connector Leads

Hassle free and quick. The simplest form of connecting Low Voltage Candles into to a system. Plug from Candle to Candle.

Available in pre-determined lengths.

0.2m
0.5m
1m
2m
3m

How Does It Work?

This system is designed to operate from 1 to 4 candles. Plug the power supply into a socket and then connect the Connector lead to the power supply and plug it into the first candle. Wire the candles in a “daisy chain” format. Wiring can be done with either a roll of cable or alternatively pre-determined din leads which is a very simple plug and go system.

Low Voltage 20 Candle System

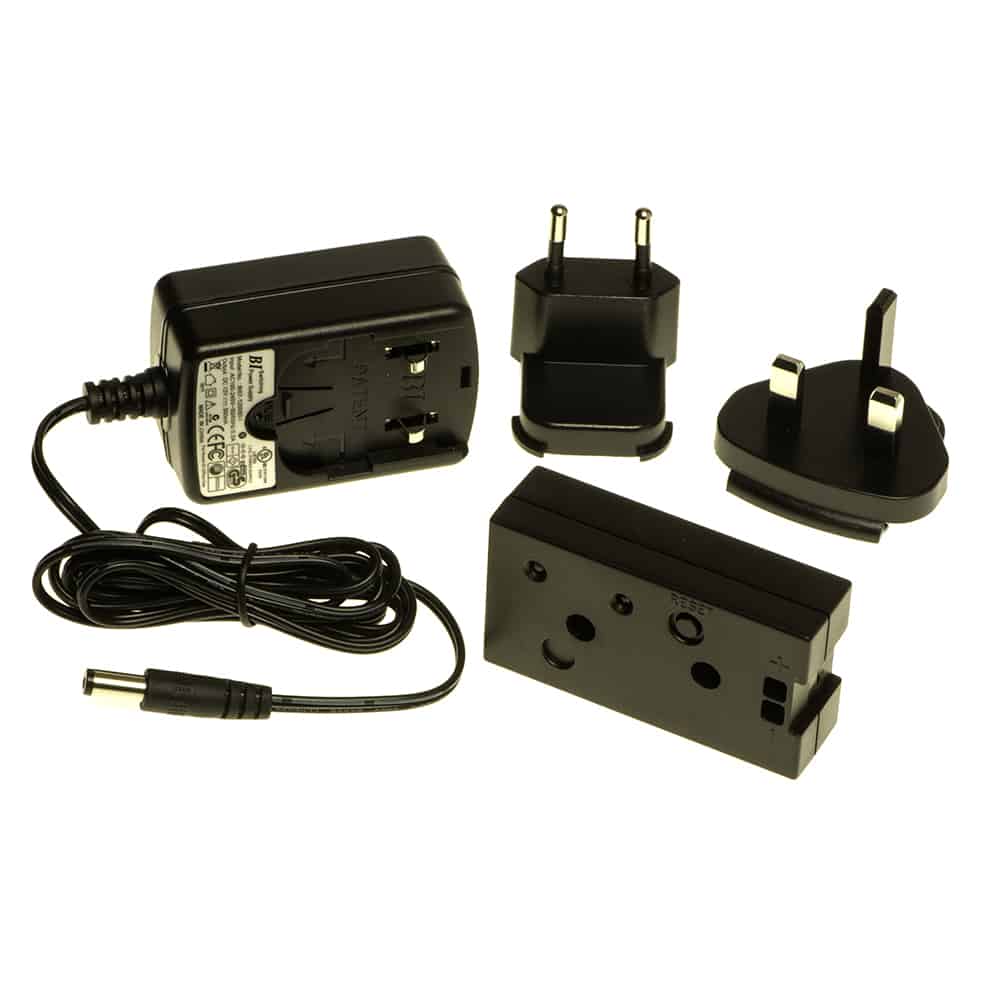

LV20 Control Box & Power Supply

LV20 Control Box & Power Supply

The Low Voltage 20 Candle System is a great mid-range low voltage system. Designed to run up to 20 candles in a "daisy chain" format.

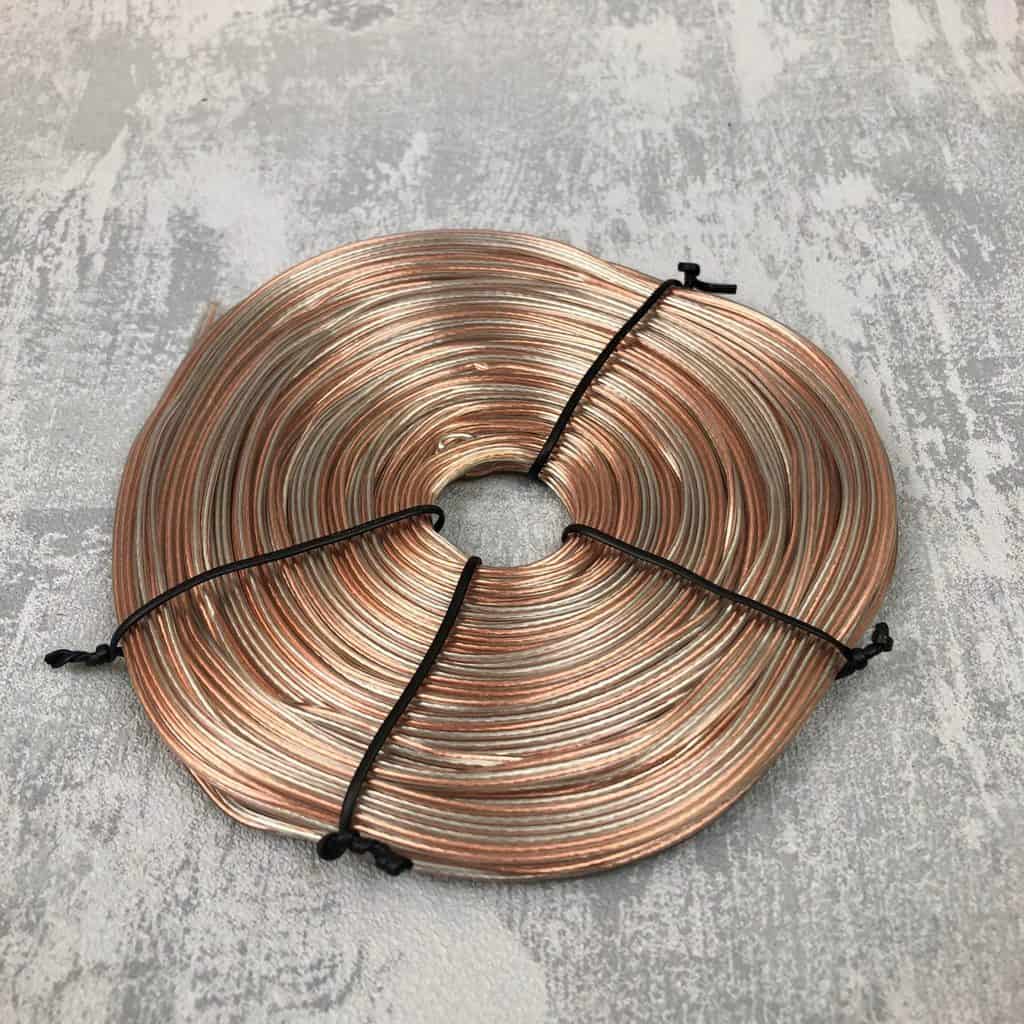

Low Voltage Cable

Low Voltage Cable

Using our own low resistance AWG #26 cable is highly recommended. The cable has been tried and tested with our Low Voltage systems to ensure that all sequences are receiving the same voltage in consistent fashion. Guarantees on system components are voided with use of 3rd party cable.

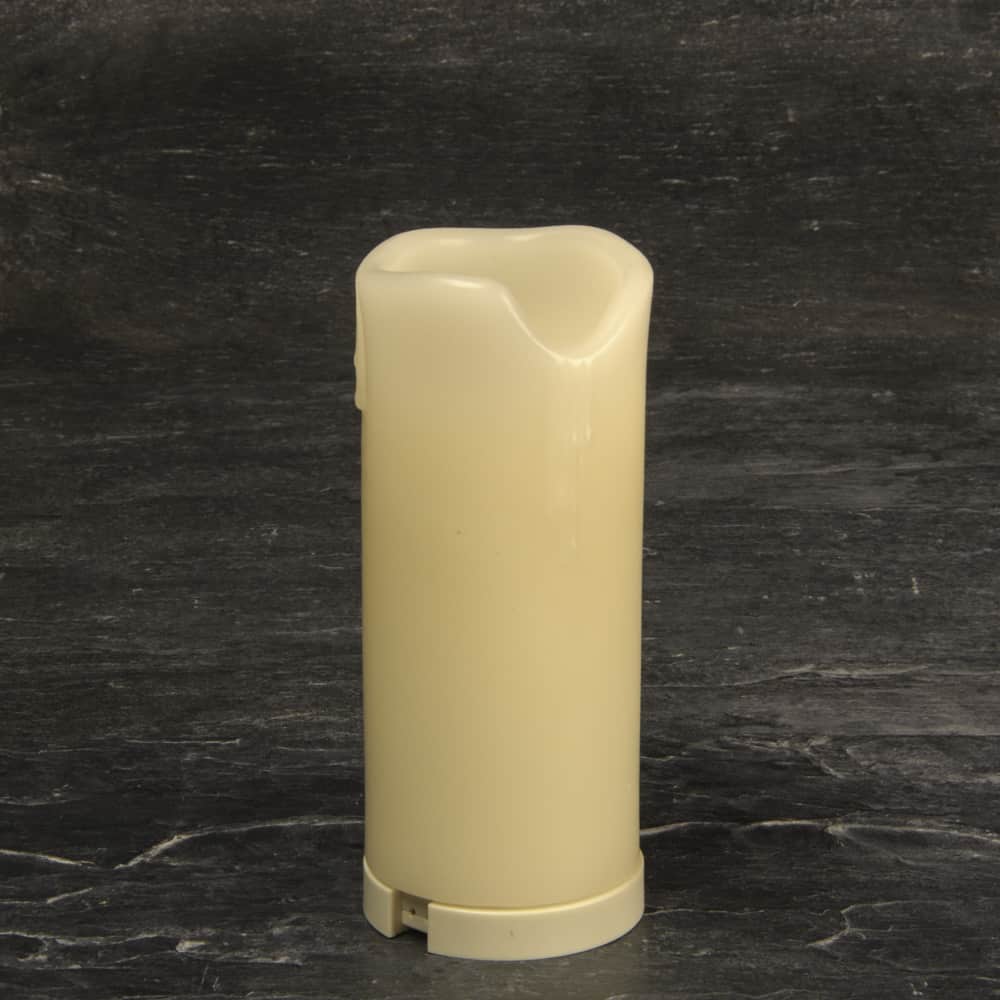

Low Voltage Candles

Low Voltage Candles

3 Available Options

- Melted Wax Pillar
- Luminara Moving Flame
- Low Voltage Module

Installations will dictate which candles are to be used. More complex installations may require some assistance with putting together what is required. If you are unsure please do just contact us.

How Does It Work?

This system is designed to operate a maximum of 20 Candles. Very simple to set up. Plug the power supply into a socket and then into the control box. Wire the candles in a “daisy chain” format. Wiring can be done with either a roll of cable or alternatively pre-determined din leads which is a very simple plug and go system.

Low Voltage 96 Candle System

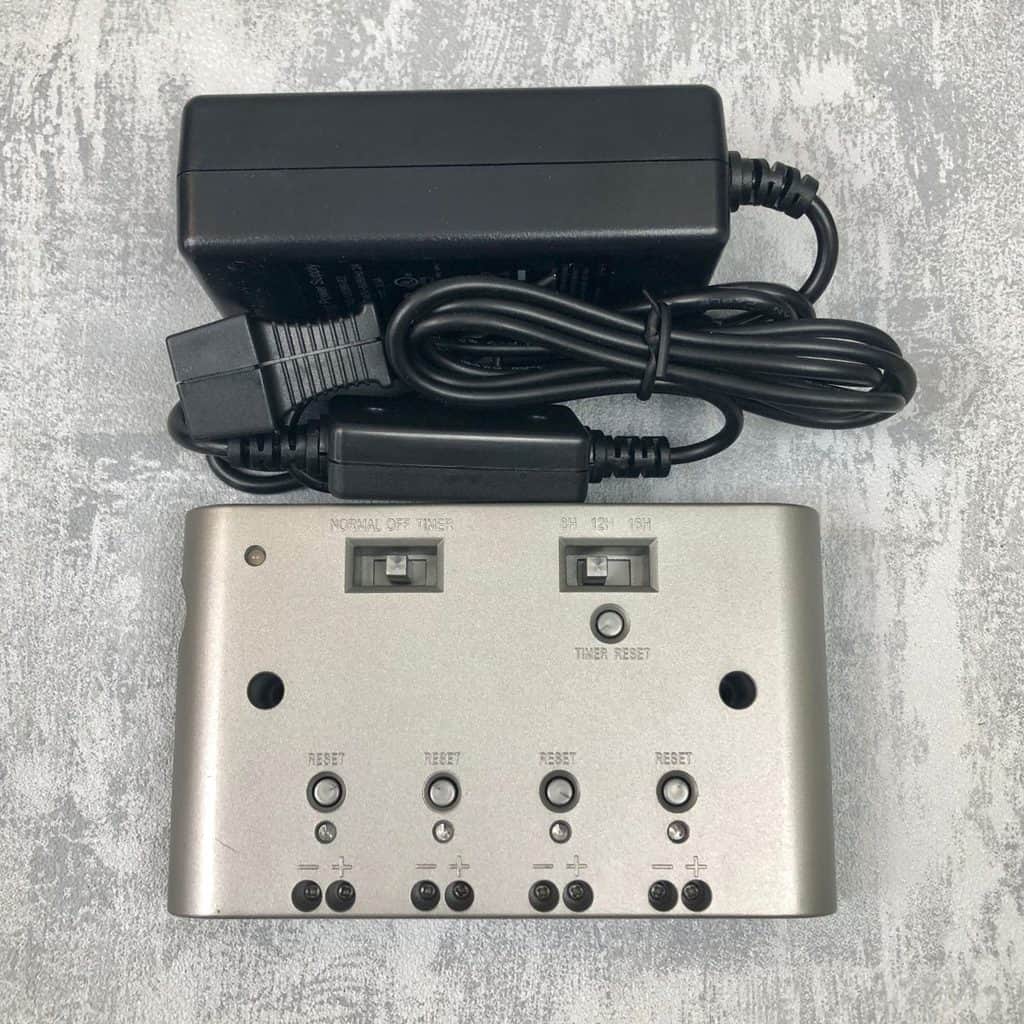

LV96 Control Box & Power Supply

LV96 Control Box & Power Supply

The power supply reduces mains AC Voltage to DC Volts and feeds this to the control box. The control box then reduces the voltage further whilst regulating current to the LED Candles to ensure consistent brightness.

Control Box Features

4 Output Channels (24 Candles per Channel)
Reset Function (Can be used as on/off per channel)
Timer Function (8,12 & 16 Hours)

Low Voltage Cable

Low Voltage Cable

Using our own low resistance AWG #26 cable is highly recommended. The cable has been tried and tested with our Low Voltage systems to ensure that all sequences are receiving the same voltage in consistent fashion. Guarantees on system components are voided with use of 3rd party cable.

Low Voltage Candles

Low Voltage Candles

3 Available Options

- Melted Wax Pillar
- Luminara Moving Flame
- Low Voltage Module

Installations will dictate which candles are to be used. More complex installations may require some assistance with putting together what is required. If you are unsure please do just contact us.

Connector Leads

Connector Leads

Connector Leads

Hassle free and quick. The simplest form of connecting Low Voltage Candles into to a system. Plug from Candle to Candle.

Available in pre-determined lengths.

0.2m
0.5m
1m
2m
3m

LV96 Voltage System – How Does It Work?

This system is designed to operate from 1 to a maximum of 96 Candles via 4 output channels (max 24 per channel). Very simple to install. Connect the power supply to the mains circuit and then into the control box. Alternatively plug into a power socket and then into the control box. Wire the candles in a “daisy chain” format. Wiring can be done with either a roll of low voltage cable or alternatively pre-determined din leads which is a very simple plug and go system. A maximum distance of 25 metres to the “first” candle on each channel is recommended. The recommended maximum distance between candles is 3 meters.

Low Voltage Candle Racks and Holders

Low Voltage Candle Racks

Low Voltage Candle Racks

These candle racks are custom made to your design and specifications. There are no candle limits and you are able to match the colour to your scheme.

2 different styles are available. A more modern "shelf" style and a traditionally British "chandelier" style.

Both options are of the highest quality and we have chosen very carefully the people we work with on these options.

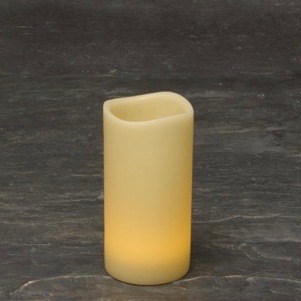

Low Voltage Candle Holders

Low Voltage Candle Holders

We have a variety of candle holders for use with Low Voltage Candle modules. Resin holders are commonly used in commercial environments due to the durability and cleanliness. Candle "flame heights" can be changed and a different "feel" achieved using holders and spacers.

Low Voltage Modular Candles

Low Voltage Modular Candles

Low Voltage Modular Candles are candles Smart Candle offer in the the Low Voltage range. Their purpose is simple, they are offered to provide a greater range of flexibility to the client.

Available in two versions - Smart Candle (Electronic Flicker) or Luminara Moving Flame

If the client has their own holders or shade or design plan these candles can be specced to fit and work.

Alternatively they can be used with Smart Candle holders, either Wax or Resin. i.e. if used with Resin holders and with relevant mounting plates and protective caps, these can be installed in outdoor areas.
