Description

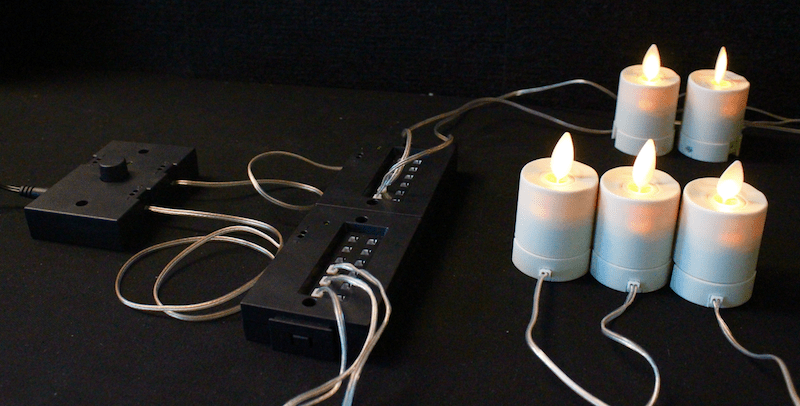

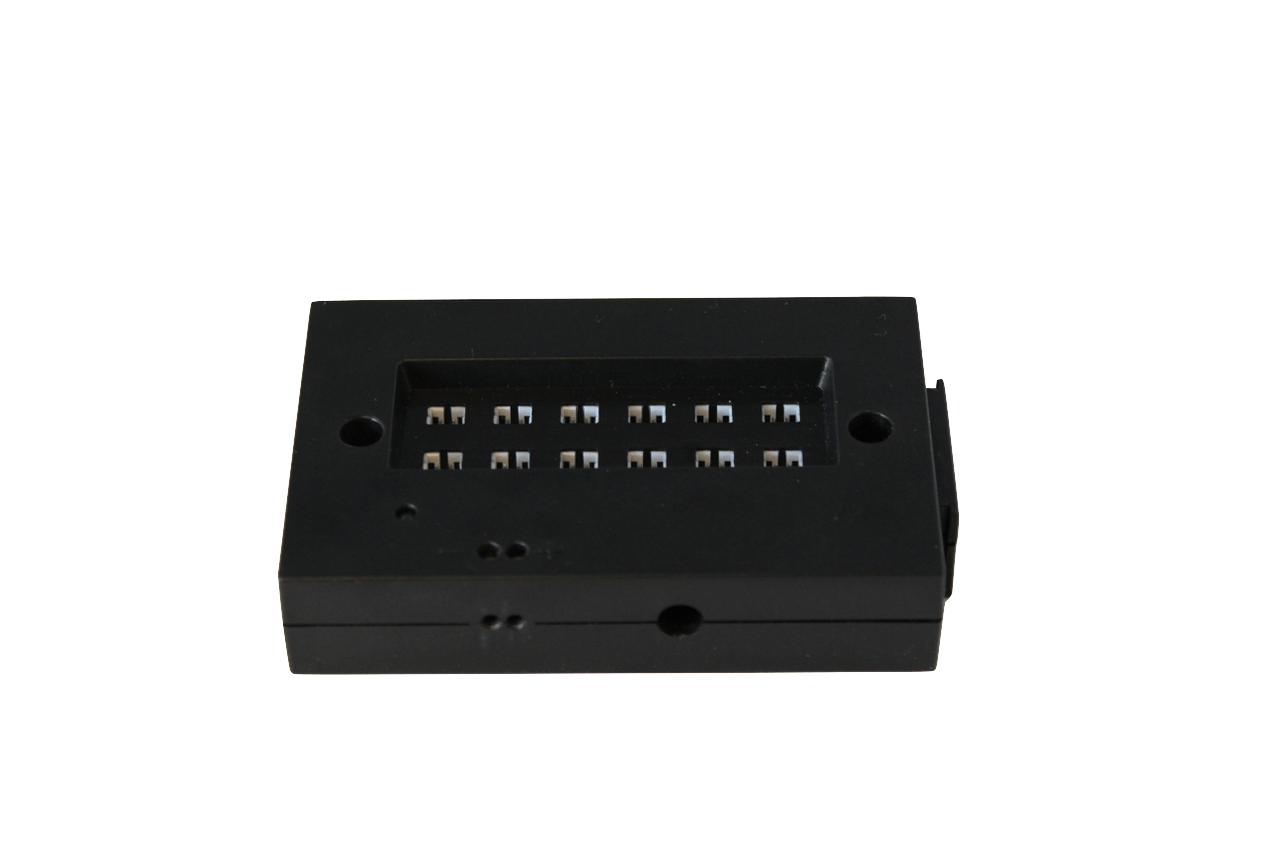

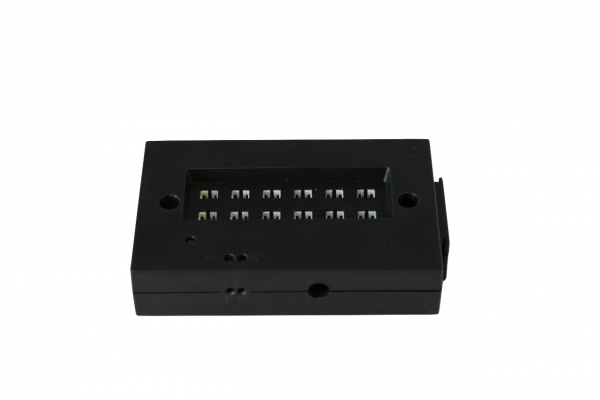

SC2871 – 12 Candle Connection Box
-
- For use with SC2870 – Dimmer Control
-
- Connection Box for 12 Dimmable Candles
-
- Ability to run 2 x 12 Candle Connection Boxes (24 Candles) from One Dimmer Control (SC2870) – interconnecting units to be able to mount as “1
-
- Reverse polarity and overload protection
-
- Simple Plug and Play System
-
- Maximum 25 metres from Dimmer Control to Connection Box
-
- Maximum 3 metres from Candle to Candle Connection Box (Each Individual Candle has to relay to candle connection box to ensure balanced voltage)
Components additionally needed:
-
- Dimmer Control Box (SC2870)
-
- Low Voltage Candles
-
- Low Voltage Cables (1 Per Candle – Varying Lengths Available) or LV Cable Roll (SC2840)
